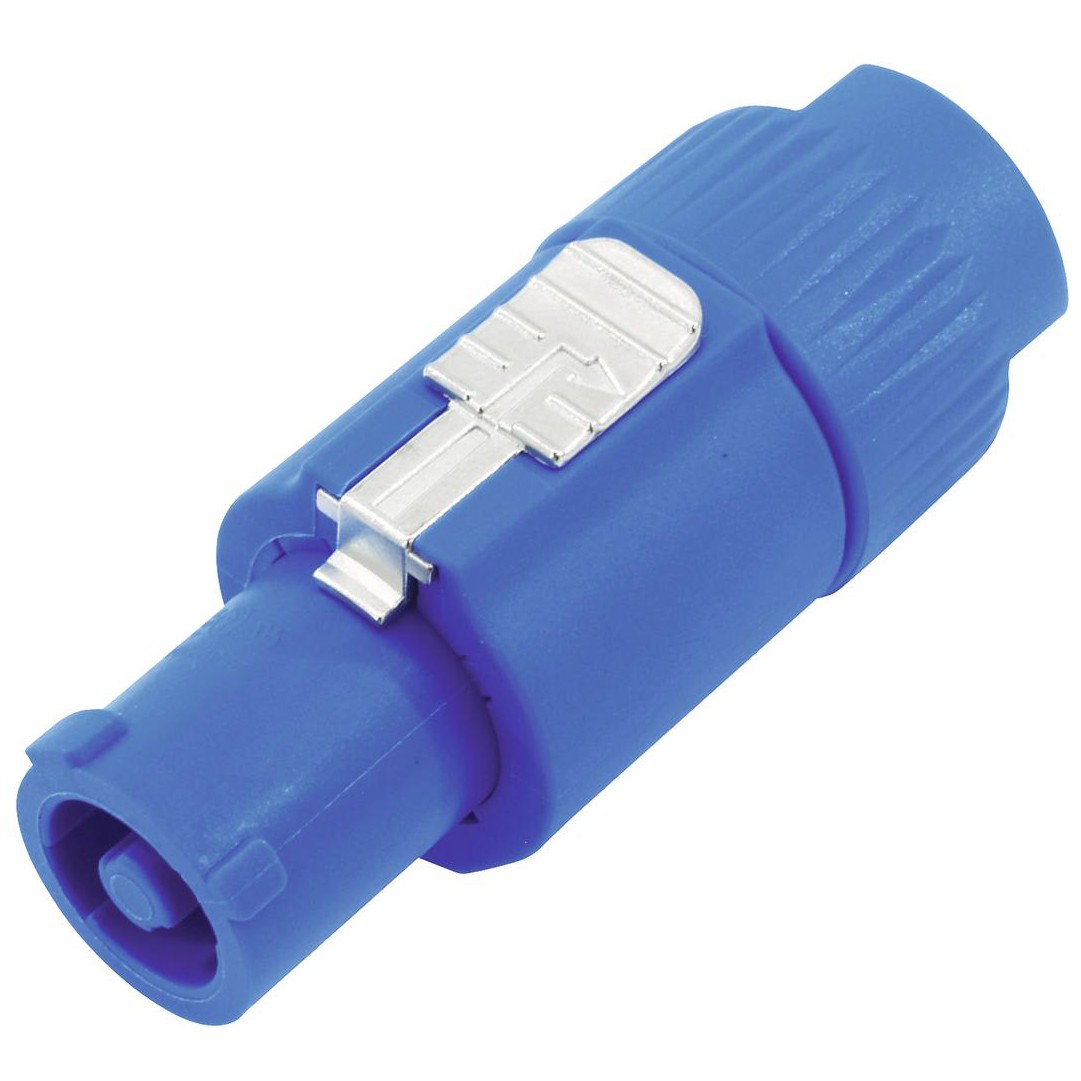

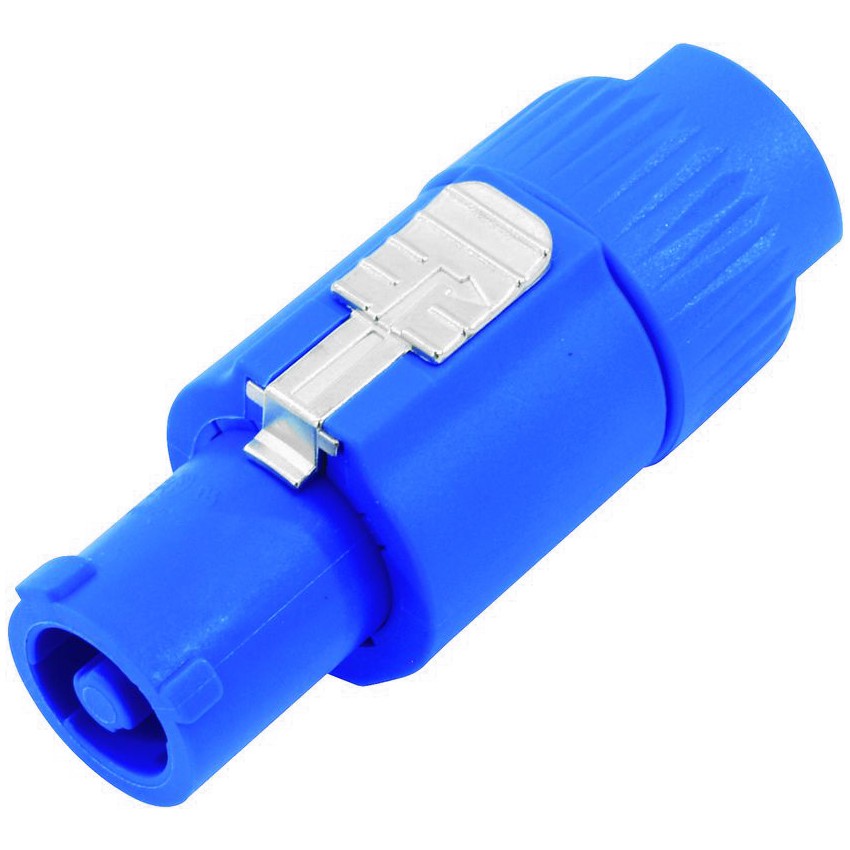

Neutrik PowerCon blue NAC3 FCA
ukončené zboží - nelze objednat
skladem
Cable plug for 5 - 15 mm cable O.D. rangePremating safety ground
Quicklock with securing lever
With the two non-interchangeable types of connectors (A-type, B-type) it is impossible to produce a short circuit
Appropriate plugs are identified by mechanical keyways and by color
Connector type: Powercon (blue)
Plug construction: Plug for cable
Technické parametry
Technické parametry
| IP classification | IP20 |
| Weight | 0,04 kg |
| Number of contacts | 2 + PE |
| Rated current per contact | 20 A RMS |
| Rated voltage | 250 V AC |
| Dielectric strength | 4000 V DC |
| Contact resistance | |
| Insulation resistance after damp heat test | >,100 Mohms |
| Creepage distance | according to IEC 664-1 |
| Cable retention force | = 220 N, depending on cable dia and material |
| Wiring | screw-type terminals or soldering nom. wire size/contact: 2.5 mm / 14 AWG |
| Solderability | complies with IEC 68-2-20 |
| Housing | PA 6 30% GR |
| Insert | PA 6 30% GR |
| Contacts | CuZn39Pb3 / CuSn6 |
| Contact surface | L+N 20 m Ag plated, Earth 4 m Ag plated |
| Chuck | POM |
| Temperature range | -30C to +80C |
| Flammability | UL94HB |
| Velikost balení | 12 x 6.5 x 2 cm |
| Hmotnost balení | 0.04 kg |
